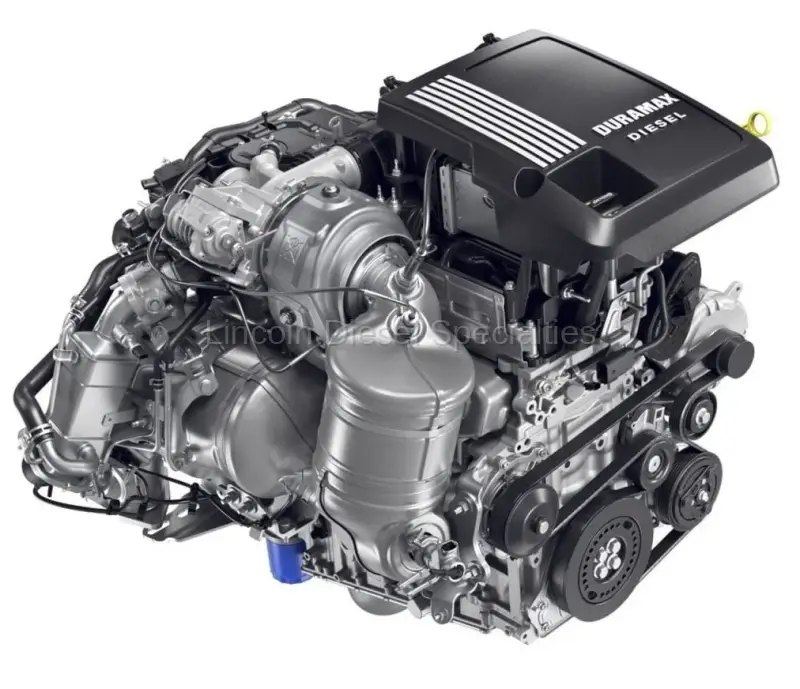

GM OEM LZ0 3.0L Replacement Engine. This Brand New GM Crate Engine is the next generation of Diesel turbo in-line 6, replacing the LM2 and delivering more power (305HP), more torque (495-Ft lbs @ 2750RPMS and delivering more performance!!

What’s Included:
*Complete Long Block Assembly

**Does Not Include: turbocharger, intercooler, intake manifold, exhaust manifold and engine electrical components**

Engine Specs:
- Engine Type: 3.0L DOHC Turbo-Diesel I6 (LZ0)
- Horsepower: 305 hp @ 3,750 RPM (SAE Certified)
- Torque: 495 lb-ft @ 2,750 RPM (SAE Certified)
- Improved Fuel Injector Design
- Upgraded Steel Pistons & Revised Combustion Bowl
- Retuned Turbocharger for Higher Output
- Enhanced Cooling System & Extended Oil Belt Life (200,000 mi)
- Lightweight Aluminum Block & Cylinder Head
- High-Pressure Common Rail Fuel System (36,250 psi / 2500 bar)
- Compression Ratio: 15.0:1
- Max Engine Speed: 5100 RPM
- Firing Order: 1-5-3-6-2-4
- Turbo System: Single Variable-Geometry Turbo with Intercooling
- Air Delivery: Max Boost – 42.8 psi (2.95 bar)

Specifications:
Bore & Stroke: 3.30" x 3.54" (84mm x 90mm)
Valvetrain: DOHC, 4 valves per cylinder
